If you're looking for efficient and effective solutions to tackle vegetation management on your farm or property, you've come to the right place.
ELHO Tractor-Mounted Mulching equipment is designed to handle various tasks, including mulching, shredding, and clearing vegetation. With their robust construction and innovative design, these mulchers are built to withstand demanding conditions and deliver exceptional performance.
A powerful chain mulcher with excellent visibility!

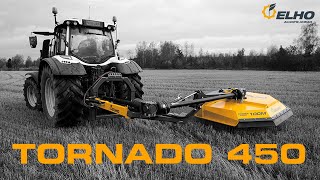

The popular Tornado 440 chain mulcher was redesigned in 2020 and is now the Tornado 450. The new ELHO Tornado 450 features a wider and more stable 3-point linkage, and the casing of the chain cutting head is now made of Hardox steel. The additional equipment has also been upgraded and now includes a rotor casing with a flywheel and hydraulic front hatch.
The chains of the ELHO Tornado cutting head are hardened and have a material thickness of 13 mm. The wide cutting head cuts/mulches extremely well, and the chain head houses a link storage compartment. The transmission between the tractor and the crusher unit is implemented with a PTO shaft and a sturdy bevel gear. The casing is sturdy and easy to keep clean. The frame and side shift construction of the Tornado 450 is familiar from the SideChopper Pro series. The strong, durable structure provides extensive reach, and the design of the frame offers excellent visibility from the cab.
ELHO Tornado chain mulchers:
| Tractor power requirment, min/max, kW* | 50-80 |
| Minimum recommended tractor weight, kg* | 3500 |
| Working width, m | 1,6 |
| Maximum reach, m | 4,4 |
| Hydraulic side shift, m | 1,8 |
| Mulcher unit tilt (up/down) | 90°/40° |
| Weight, kg | 800 |
| PTO speed, RPM | 540 |
| Hydraulic pressure, min/max bar | 170-200 |
| 3 point linkage | Cat. 2 |
| Hydraulic coupling, single action | 1 |
| Hydraulic coupling, double action | 2 |
| Friction torque limiter | x |
| Overrunning clutch | - |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
A mulcher with smart tilt!
The brand-new ELHO Tornado 470 is a mechanical chain mulcher with a maximum reach of 4.7 metres. The machine features a new smart tilt function on the cutting head, which limits the movement of the tilt so that the breakover angles of the secondary shaft remain moderate. This feature protects the PTO shafts, which cannot be operated at excessive angles. In the transport position, the tilt is locked. When lowering the boom, the tile is released the more the boom is lowered. This makes the machine very stable and safe to transport, even at high transport speeds.
When avoiding large trees, for example, the mulcher can be lifted very quickly with one operation and returned to the mulching position after passing the obstacle.
The front hatch opens hydraulically. The cutting head comes as standard with a steel disc that works as a flywheel and prevents the chains from hitting the casing.
The length of the chains is 1.8 metres, providing a sufficient cutting width and power for even the most demanding tasks.
| Tractor power requirment, min/max, kW* | 50-80 |
| Minimum recommended tractor weight, kg* | 4000 |
| Working width, m | 1,8 |
| Maximum reach, m | 4,7 |
| Hydraulic side shift, m | 1,8 |
| Mulcher unit tilt (up/down) | 90°/36° |
| Weight, kg | 1080 |
| PTO speed, RPM | 540 |
| Hydraulic pressure, min/max bar | 170-200 |
| 3 point linkage | Cat. 2/3 |
| Hydraulic coupling, single action | 1 |
| Hydraulic coupling, double action | 3 |
| Friction torque limiter | x |
| Overrunning clutch | - |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
The ELHO mulcher range has expanded with the addition of the impressive new Tornado 560!
The brand-new ELHO Tornado 560 is a mechanically driven chain mulcher with an impressing working reach of 5.5 metres. The V-belt transmission enables the reach to be extended even further compared to other models. Another great advantage is that the gearbox is fixed to the side bar pivot point, so the PTO shaft angle is not affected by the side bar position. This means that the mulcher can be used at any angle that the side bar is in.
The Tornado 560 comes as standard with a tilt cylinder for the cutting head. The tilt angle is an impressive 50 degrees and can be used regardless of the side bar position. The tilt function is protected by a pressure relief valve. The tilt function can also be used in the floating position. The front hatch can be equipped with a hydraulic lift function. The cutting head comes as standard with a steel disc that works as a flywheel to smoothen the rotation and help hold the chains down in the working position.
| Tractor power requirment, min/max, kW* | 50-90 |
| Minimum recommended tractor weight, kg* | 5000 |
| Working width, m | 1,6 |
| Maximum reach, m | 5,5 |
| Hydraulic side shift, m | 1,8 |
| Mulcher unit tilt (up/down) | 90°/45° |
| Weight, kg | 1220 |
| PTO speed, RPM | 750 |
| Hydraulic pressure, min/max bar | 170-200 |
| 3 point linkage | Cat. 2 |
| Hydraulic coupling, single action | 0 |
| Hydraulic coupling, double action | 3 |
| Hydraulic connection-free return | 1 |
| Friction torque limiter | x |
| Overrunning clutch | - |
*) The tractor weight and power is determined based on the conditions
**) Special width, Cat.3
X = Standard O = Option - = Not available
Hydraulic chain cutting head for boom machines!
The Tornado L is a cutting head with two chains that is suitable for boom machines. The cutting head is designed for use with excavators, forest loaders and other machines with sufficient hydraulic output.
The chain unit includes two chains with hardened 13 mm links and a link storage compartment. The boom connection comes as standard.
If you are looking for a new chain cutting head, the durable ELHO Tornado L is the reliable choice!
ELHO Tornado L
| Working width, m | 1,6 |
| Weight, kg | 350 |
| Hydraulic pressure, min/max bar | 200-380 |
| Hydraulic coupling, single action | 1 |
| Hydraulic coupling, double action | 1 |
| Max oil flow, l/min | 120 |
An effective mulcher for professional bush, shrub and brushwood clearances, roadside mowing, managing fallow land and pastures, and forest roadside mowing!
The ELHO SideChopper 420 PRO is a mulcher that is designed for demanding conditions and contracting. The SideChopper 420 PRO attaches to the tractor’s 3-point linkage and is ideal for contracting and farm use.
The SideChopper 420 PRO mulches large, thick and high thickets and even small trees. SideChopper Pro mulchers have been designed to withstand the demanding conditions of Finland.
ELHO Sidechopper 420 Pro
| Tractor power requirment, min/max, kW*Tractor power requirment, min/max, kW* | 50-80 |
| Minimum recommended tractor weight, kg* | 3500 |
| Working width, m | 2,1 |
| Maximum reach, m | 4,2 |
| Hydraulic side shift, m | 1,8 |
| Mulcher unit tilt (up/down) | 90°/45° |
| Number of knives | 20 |
| Weight, kg | 890 |
| PTO speed, RPM | 540 |
| Hydraulic pressure, min/max bar | 170-200 |
| 3 point linkage | Cat.2 |
| Hydraulic coupling, single action | 1 |
| Hydraulic coupling, double action | 1 |
| Overrunning clutch | x |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
A powerful tractor-mounted mulcher!
The ELHO SideChopper 460 PRO is an effective mulcher for professional bush, shrub and brushwood clearances, roadside mowing, managing fallow land and pastures, and forest roadside mowing.
The SideChopper 460 PRO is designed for demanding conditions and contracting. The machine mulches large, thick and high thickets and even small trees. SideChopper Pro mulchers have been designed to withstand the demanding conditions of Finland.
ELHO Sidechopper 460 Pro:
| Tractor power requirment, min/max, kW*Tractor power requirment, min/max, kW* | 60-100 |
| Minimum recommended tractor weight, kg* | 5000 |
| Working width, m | 2,4 |
| Maximum reach, m | 4,6 |
| Hydraulic side shift, m | 1,8 |
| Mulcher unit tilt (up/down) | 90°/45° |
| Number of knives | 24 |
| Weight, kg | 1000 |
| PTO speed, RPM | 540 |
| Hydraulic pressure, min/max bar | 170-200 |
| 3 point linkage | Cat.2 |
| Hydraulic coupling, single action | 1 |
| Hydraulic coupling, double action | 1 |
| Overrunning clutch | x |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
A powerful mulcher for professional contracting!
The ELHO SideChopper TPM 520 PRO is designed for full-time contracting and is the perfect choice for contractors, municipalities, road maintenance teams, forest road associations and other demanding users. The reach and cutting width provide access to the most challenging places.
The power transmission is fully mechanical all the way to the rotor through high-powered V-belts and a bevel gear. The cutting head can be used in all positions and angles, even upside-down above the cab. Horizontal and vertical movements are adjusted hydraulically, and the PTO shaft is equipped with an over running clutch.
| Tractor power requirment, min/max, kW*Tractor power requirment, min/max, kW* | 70-110 |
| Minimum recommended tractor weight, kg* | 6500 |
| Working width, m | 2,1 |
| Maximum reach, m | 5,2 |
| Hydraulic side shift, m | 3 |
| Mulcher unit tilt (up/down) | 180°/90° |
| Number of knives | 20 |
| Weight, kg | 1900 |
| PTO speed, RPM | 1000 |
| Hydraulic pressure, min/max bar | 170-200 |
| 3 point linkage | Cat.3 |
| Hydraulic coupling, single action | 4 |
| Hydraulic coupling, double action | 1 |
| Friction torque limiter | - |
| Overrunning clutch | x |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Easy Attachment
Our tractor-mounted mulchers are designed for easy attachment to your tractor, allowing you to quickly and conveniently transform your machine into a powerful vegetation management tool. From clearing overgrown areas to maintaining pastures and roadways, ELHO mulchers provide reliable and efficient operation.
Fine Shredding and Mulching Abilities
One of the key benefits of ELHO Tractor-Mounted Mulching equipment is their ability to finely shred and mulch vegetation, helping to improve soil health and nutrient cycling. The shredded material acts as a natural mulch, providing moisture retention and weed suppression, while also promoting decomposition and nutrient release.
Versatility
ELHO understands the importance of versatility in agriculture, which is why our mulchers are designed to tackle a wide range of vegetation types and terrain. Whether you're dealing with grass, brush, crop residues, or woody materials, ELHO mulchers offer efficient shredding and mulching capabilities, ensuring a clean and well-maintained landscape.
Transform your vegetation management tasks with ELHO Tractor-Mounted Mulching equipment. Shop now and discover the difference that our high-quality mulchers can make in maintaining your farm or property in New Zealand.
Contact us today!
